Wristband Tags
ATEX and non-ATEX devices for UWB-BLE personnel tracking and alerting
Wristband PRO is an industrial-grade wristband device for personnel tracking using UWB and BLE RTLS. Two-way alerting and sensor telemetry features over UWB and BLE are included in addition to location tracking.

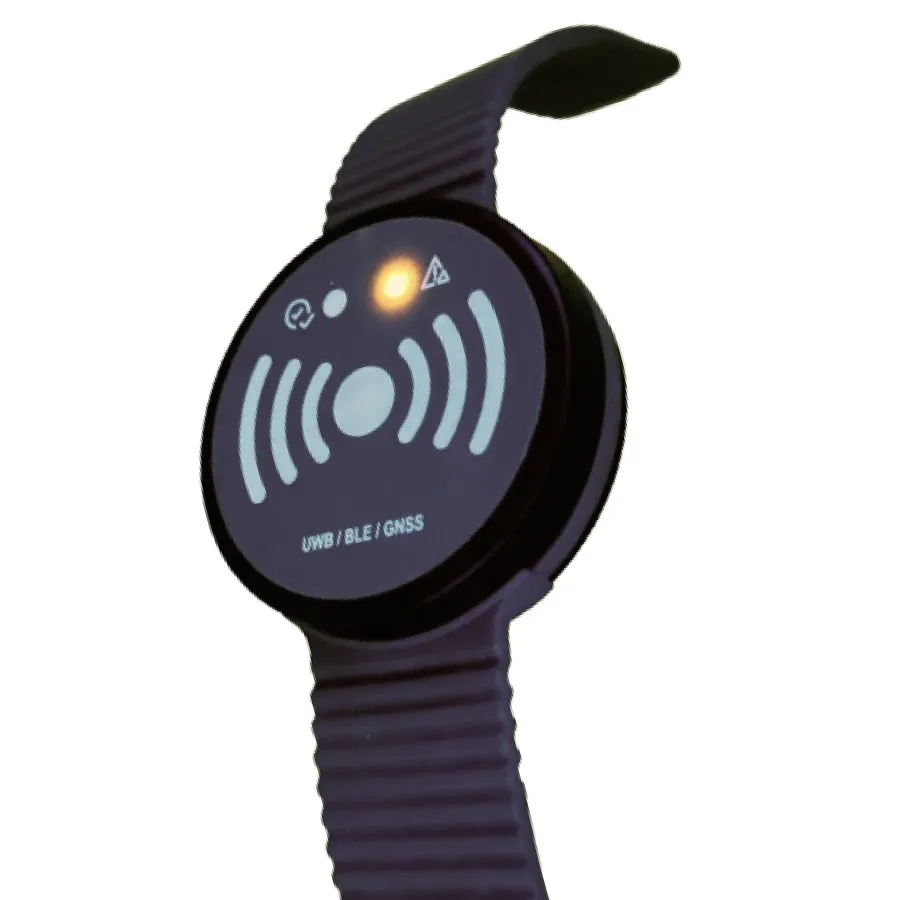

The device also includes Bosch 6-axis IMU, barometer and the power supply over magnetic connector to stay compliant with IP67 requirements. Wristband PRO also has a front panel with two LEDs and a programmable button, which is used for alerting by default.
Wristband PRO is an industrial-grade wristband device for personnel tracking using UWB and BLE RTLS. Two-way alerting and sensor telemetry features over UWB and BLE are included in addition to location tracking.
The device also includes Bosch 6-axis IMU, barometer and the power supply over magnetic connector to stay compliant with IP67 requirements. Wristband PRO also has a front panel with two LEDs and a programmable button, which is used for alerting by default.
Features
BLE chipset and antenna: Nordic nRF52840, SMD chip antenna
UWB chipset and antenna: Qorvo/Decawave DW1000, SMD chip antenna
6-axis IMU (accelerometer, gyroscope): Bosch BMI270
Barometer: Bosch BMP390
Power supply options:
- Magnetic connector for recharging 600 mAh 3.7V Li-Po accumulator (non-ATEX version).
- Wireless charging with extra IC module for ATEX version.
Connectors:

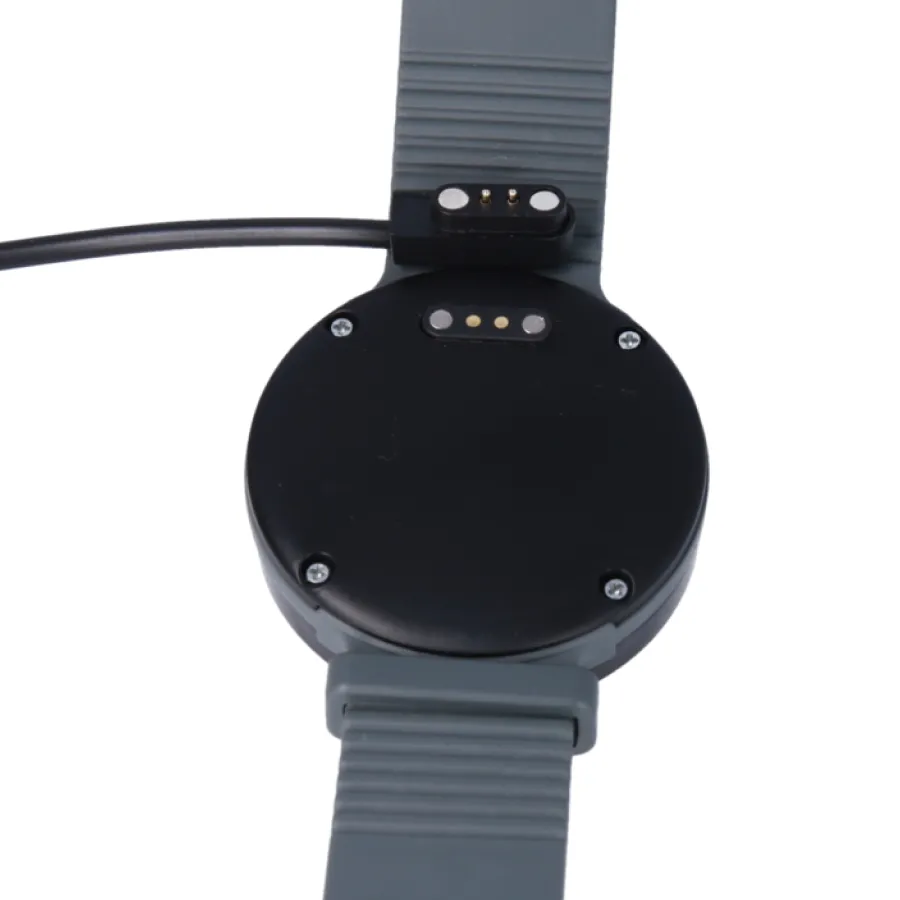

- Protected magnetic connector
- Connector for NFC antenna
- Internal UART connector for sensors
- Internal connector for Li-Po / Li-Ion accumulator
