Generic 2D-3D RTLS kit for personnel and equipment
UWB TWR and TDoA system for broad range of location tracking scenarios
The kit includes hardware and software
for testing purposes or small pilot installations.
for testing purposes or small pilot installations.

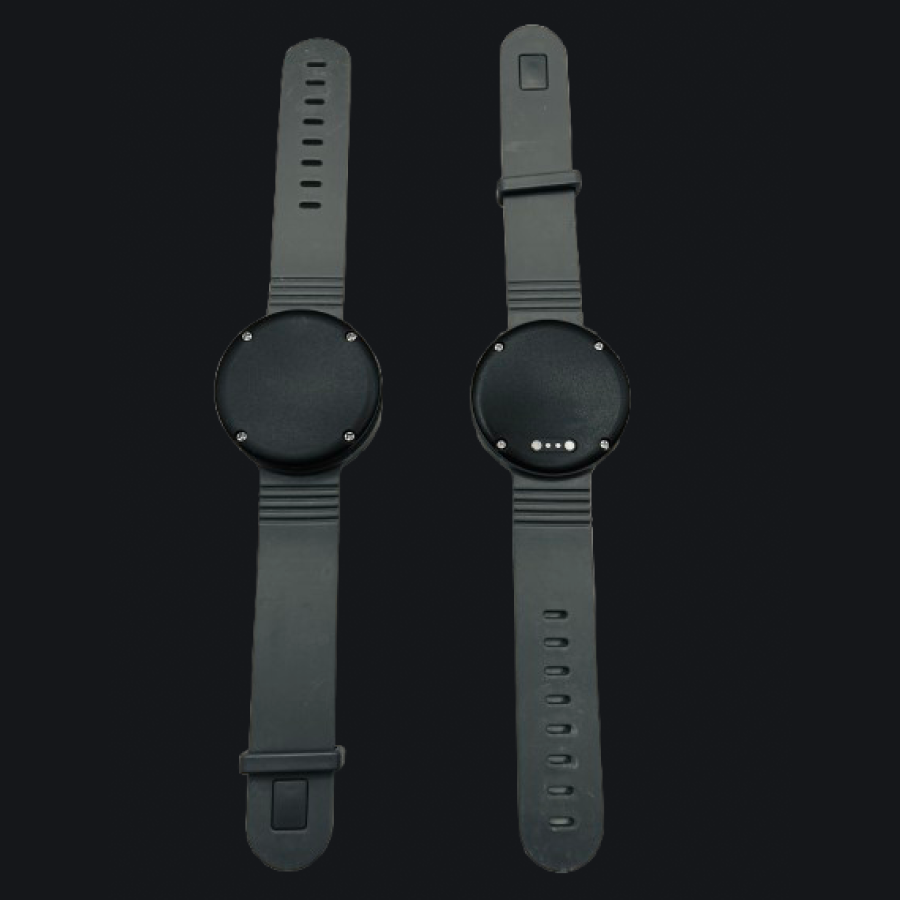

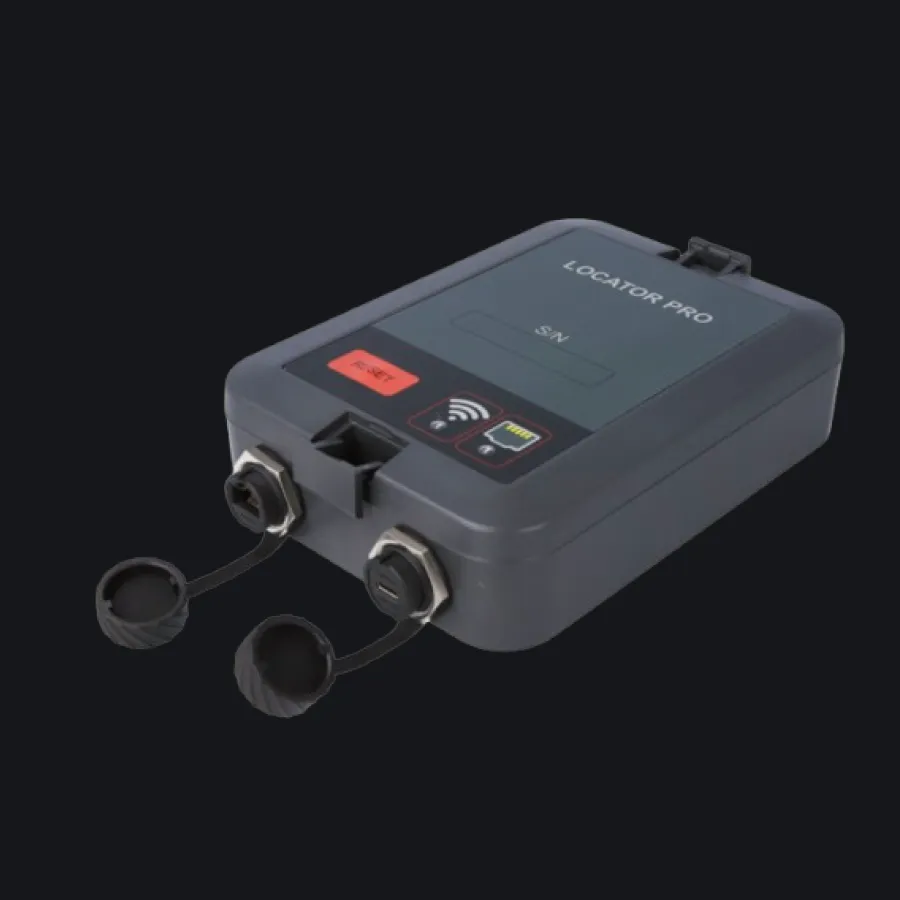

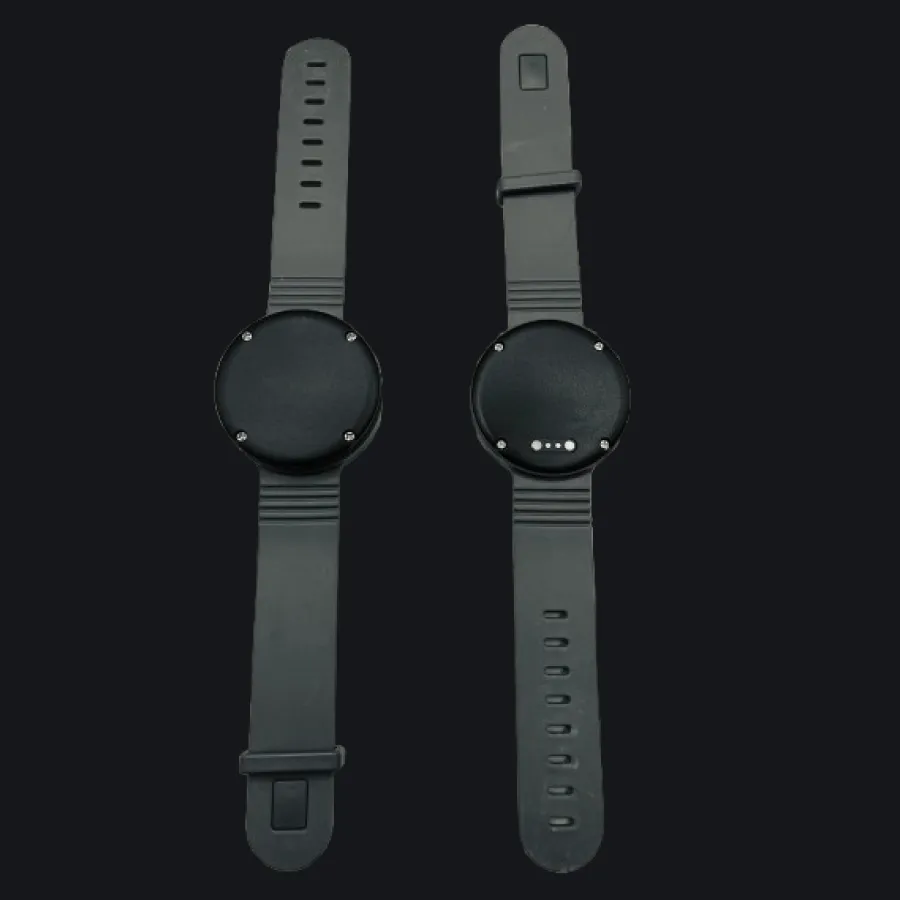

Supports low-cost installations with sub-$100 RTLS anchors (Locator Lite) and sub-$40 RTLS tags (embeddable UWB modules).
Variety of connectivity features for the RTLS anchors:
- Ethernet LAN and PoE
- RS-485
- WLAN
- Wi-Fi Mesh
- UWB Link
- RS-485
- BLE GATT data streaming
UWB TWR characteristics:
- More suitable for higher-precision tracking with small amounts of objects
- Higher power consumption than TDoA: shorter battery life per UWB tag 5-10 cm accuracy for static or slowly moving objects 20-30 cm accuracy for moving objects Up to 150 meters range with optional long-range UWB anchors (up to 1200 meters)
UWB TDoA characteristics:
- More suitable for larger amounts of objects to be tracked
- Lower power consumption than TWR: longer battery life per UWB tag
- 50-80 cm accuracy for moving and static objects
- Up to 150 meters range with optional long-range UWB anchors (up to 1200 meters)
RTLS algorithms and data protocols:
- Levenberg-Marquardt with Kalman filtering for the multilateration algorithm
- JSON over MQTT as the main RTLS data protocol
- Default coordinates: (Lat,Lon,Alt) output in EPSG:4326 system
